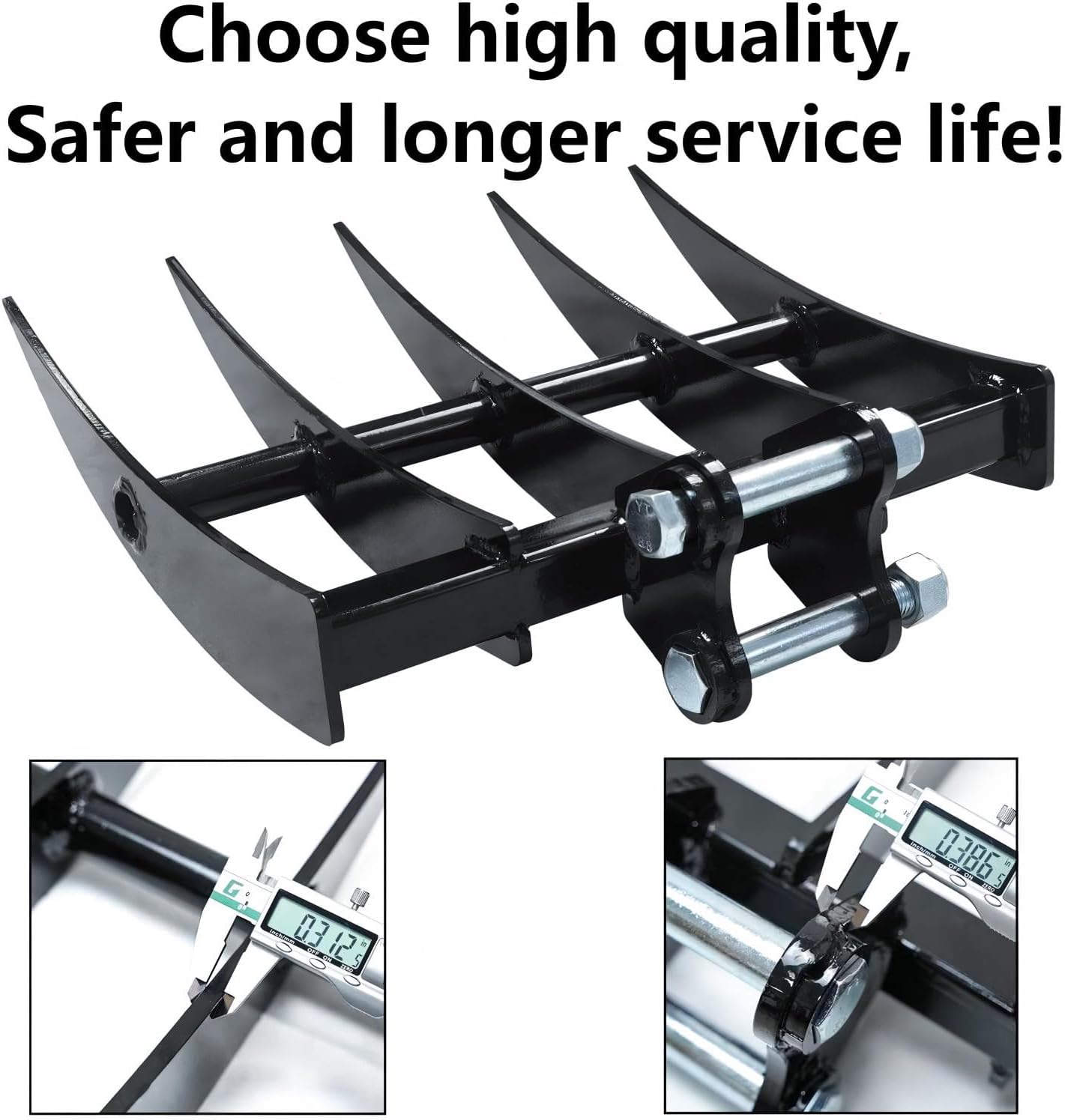

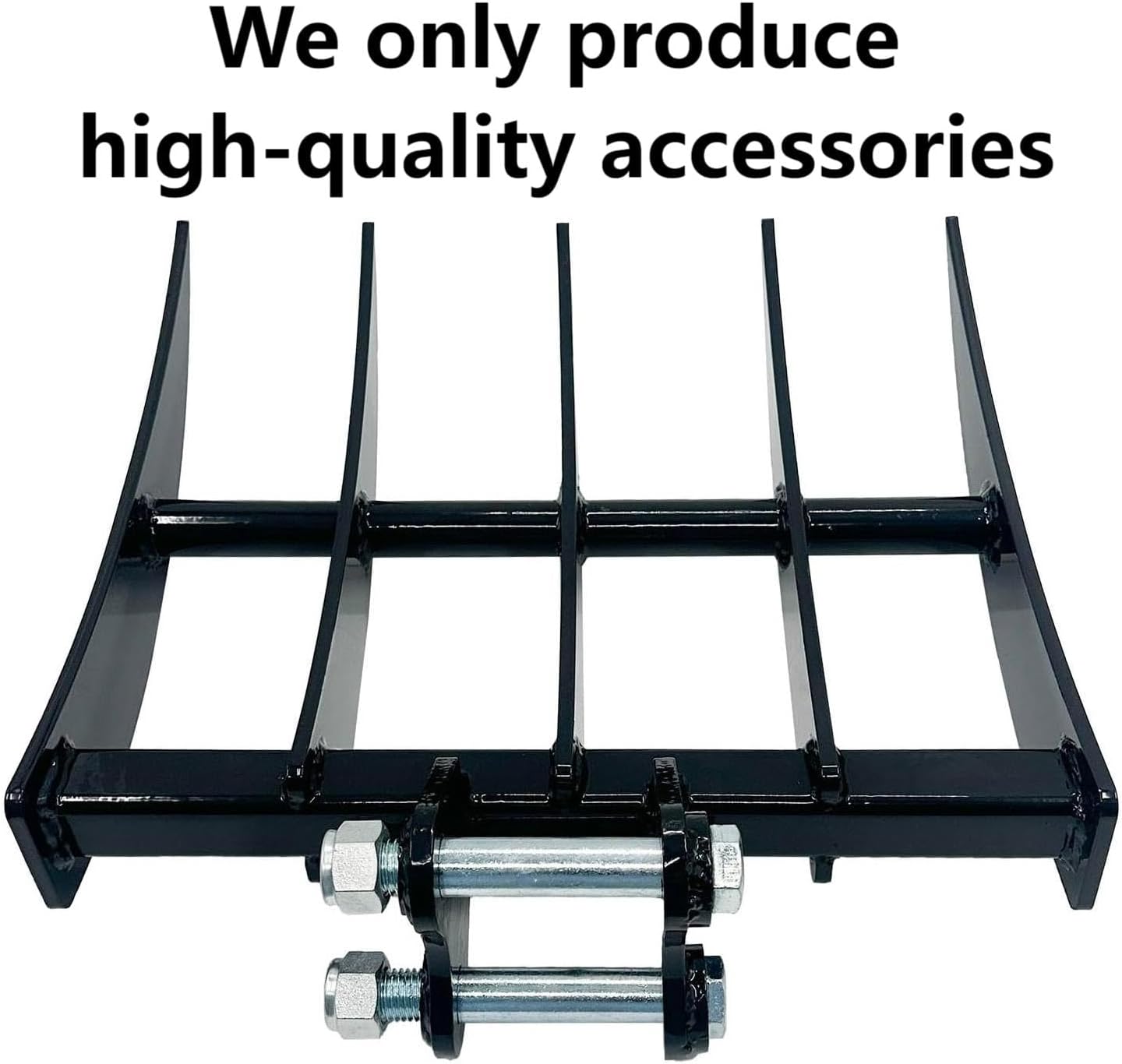

500mm Mini Excavator rake Attachment for 0.8-2 tons Diggers，Thickened Manganese Steel. Land clearing, Debris and Soil Management.

Boost your land-clearing efficiency with this mini excavator rake attachment. It speeds up demolition debris collection and is ideal for loosening and removing surface soil, gravel, or other materials from the ground

• 【Rake Usage】Crush the hard soil and loosen the soil. Distinguish gravel, roots and construction debris when removing garbage, and also level the land. However, it cannot be used for excavating heavy duty work
• 【Material of accessories】It is made of high carbon manganese steel, which has excellent durability, deformation resistance, abrasion resistance and corrosion resistance, and can withstand harsh working conditions.
• 【Product Performance】Tooth pitch: generally 110 mm, frame designed as box structure (8 mm thick), able to withstand bending and twisting. The span is 90 mm/3.54 inches, the hole diameter is 25 mm/0.98 inches, and the center wheel spacing is 92 mm/3.64 inches. With 2 hinge pins and 2 nuts included,Working efficiency: loosening soil area 30-50 m²/hour
• 【Maintenance and care】Operating suggestions: Insert the toothed rake into the soil at an angle of 30°-45°, and maintain a steady speed when retracting it. Remove hard objects: When encountering large stones, raise the tine harrow to prevent damage. Maintenance: Remove roots or debris caught between the tines and keep the rotating bearings greased. Common problems Tine tip wear: Repair by surface welding or replace individual tines. Frame Bending: Avoid overloading and hitting hard objects.
• 【EASY TO INSTALL】The rake can be easily mounted to an excavator to get the job done with ease. Compatible with most small excavators, the permissible error range is only 1-3 mm/0.04-0.12 inches, considering the importance of the connection size.
