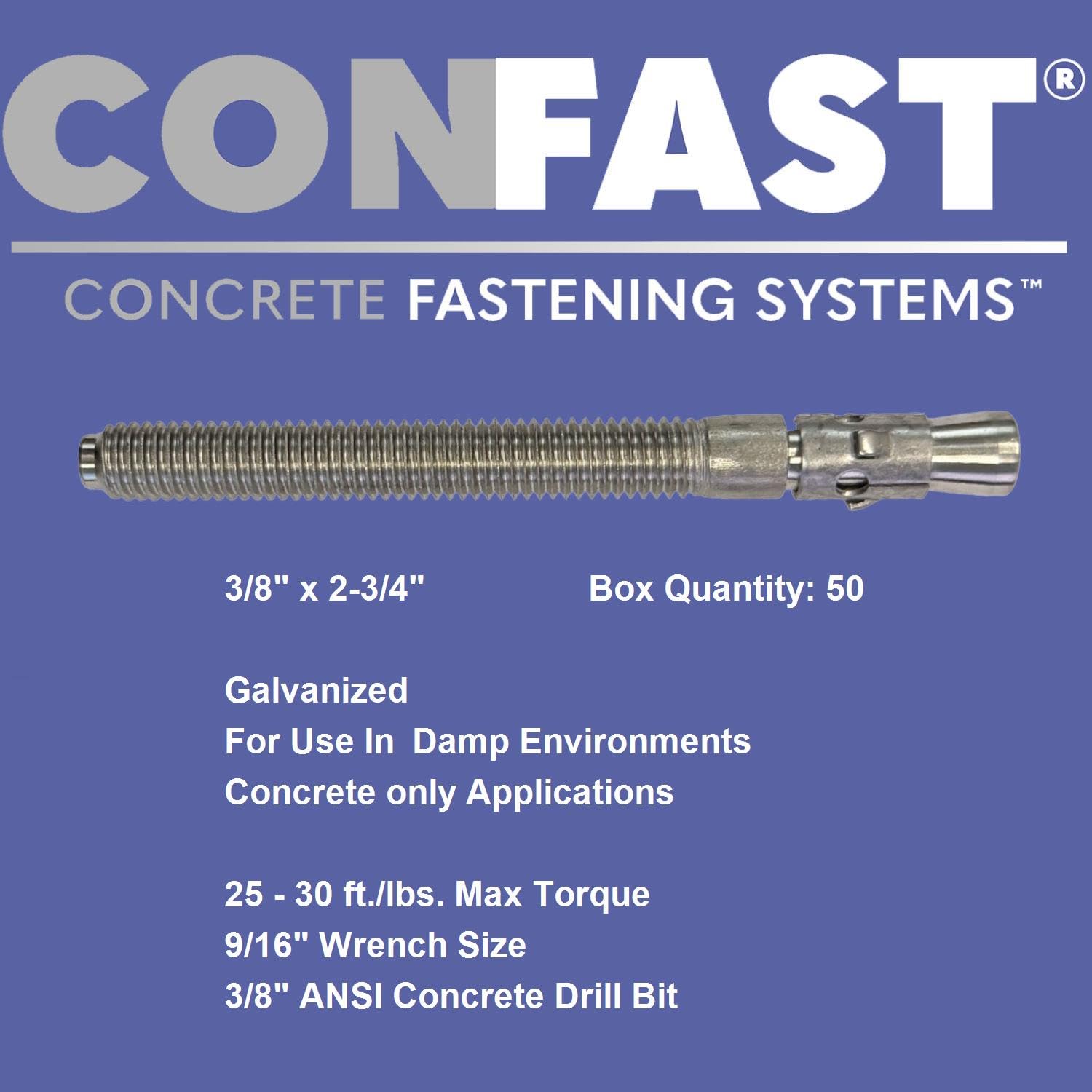

CONFAST 3/8" x 2-3/4" Galvanized Wedge Anchor (Box of 50)

ApplicationsThe anchor is made from Carbon Steel, and is Galvanized Carbon-Steel. This anchor is designed for use in Concrete only, and should never be used in block or brick base material. EnvironmentThe anchor is designed for use in a Damp environment.Hole Diameter/Bit DiameterThe anchor requires a 3/8" hole to be drilled in the base material (Concrete only). The hole should be drilled with carbide tipped bit that meets ANSI standards and used in a hammer drill.Diameter of Anchor The diameter of the anchor is 3/8".Length Anchor The length of the anchor is 2-3/4"Thread LengthThe length of the threads on the anchor is 1-1/2" in length.Minimum EmbedmentThe minimum anchor embedment into the concrete is 1-1/2". Therefore, the anchor must be installed so that a minimum of 1-1/2" of the anchor is embedded into the concrete.Maximum Fixture ThicknessThe maximum fixture thickness or the maximum thickness of the material being fastened for a anchor is 7/8". This will ensure that the minimum embedment of 1-1/2" will be met.Fixture Hole DiameterThe hole in the fixture or material being fastened must be larger than the designated diameter of the anchor. The 3/8" diameter anchor requires the hole in the fixture to be 1/2".Torque ValueTo be set properly in the concrete, the anchor must be torqued to between 25 - 30 ft./lbs.Spacing between AnchorsEach anchor must be spaced a minimum distance of 3-3/4" from each other when measured center to center.Edge DistanceIt is very important not to install the anchor any closer than 1-7/8" from an unsupported edge of the concrete.

• GALVANIZED - Helps prevent rusting in moist environments
• WIDE RANGE OF SIZES - Insures proper fastener for best results
• PACKAGED WITH NUTS AND WASHERS - Fast, quick, complete installation
• HOLE SIZE IS ANCHOR SIZE - Simplicity and ease of installation
