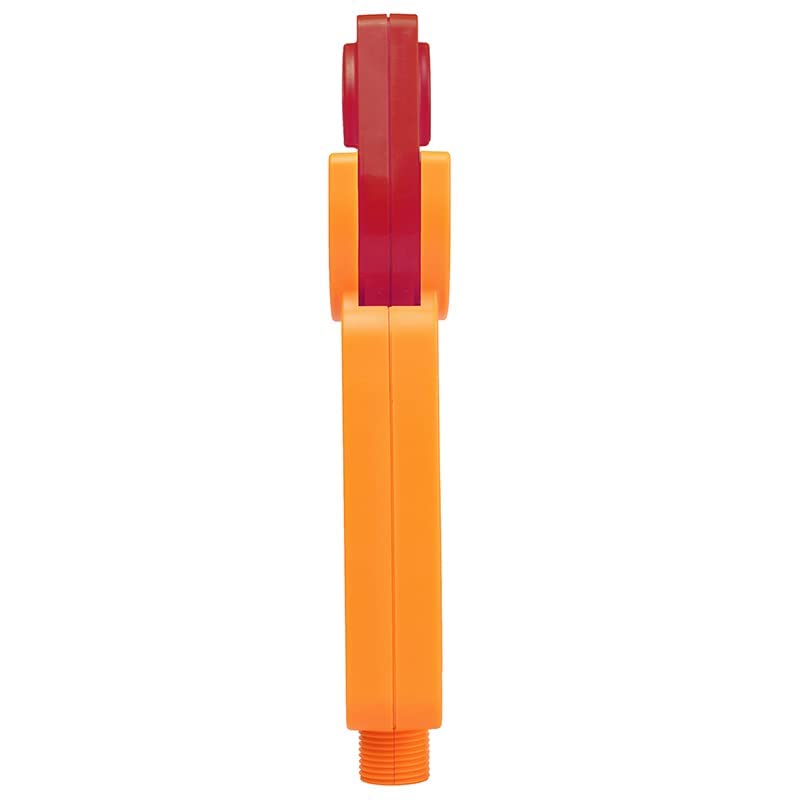

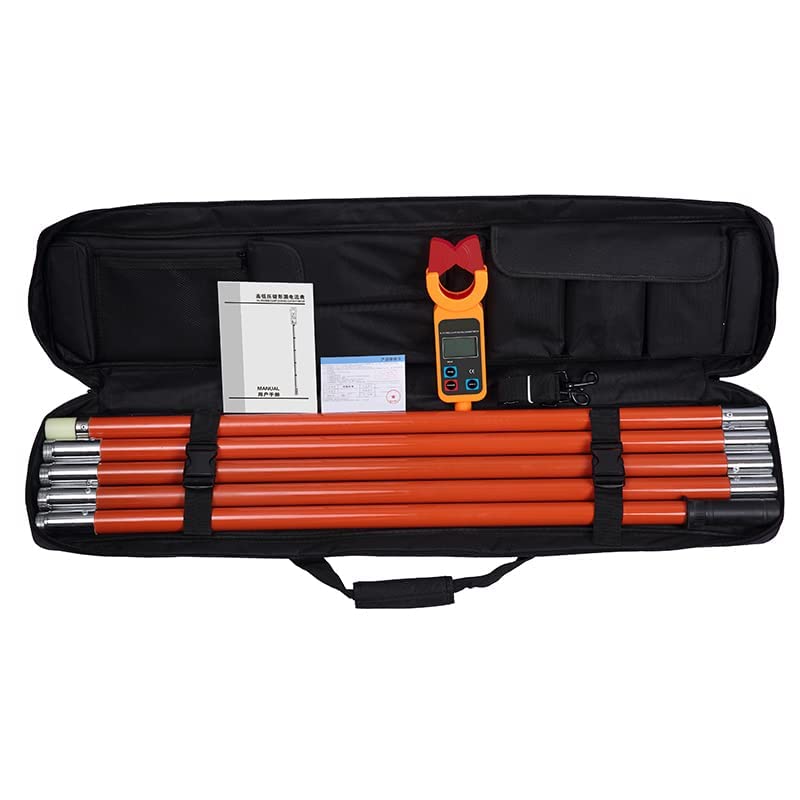

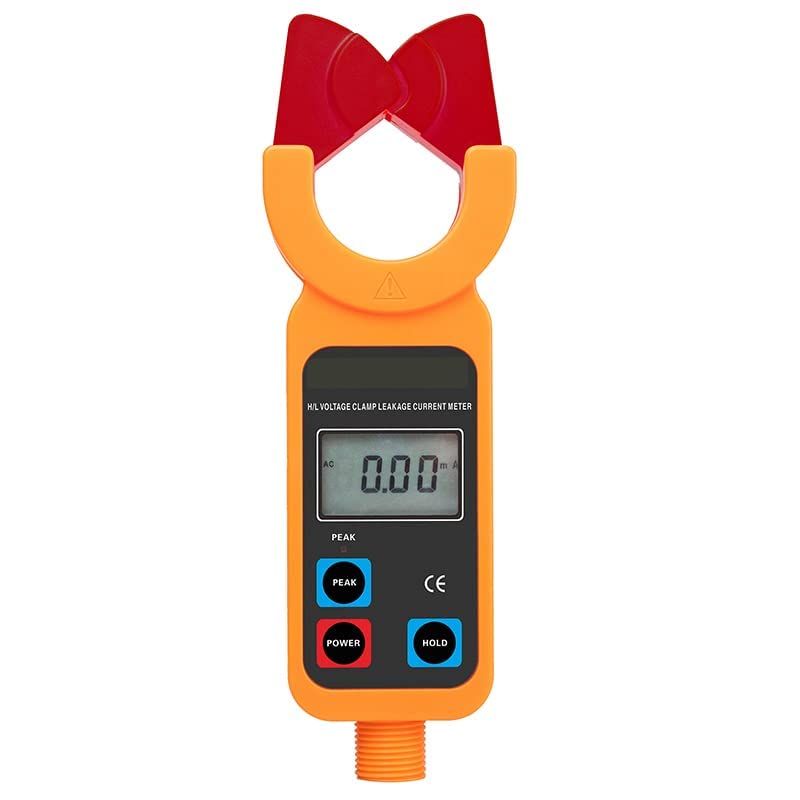

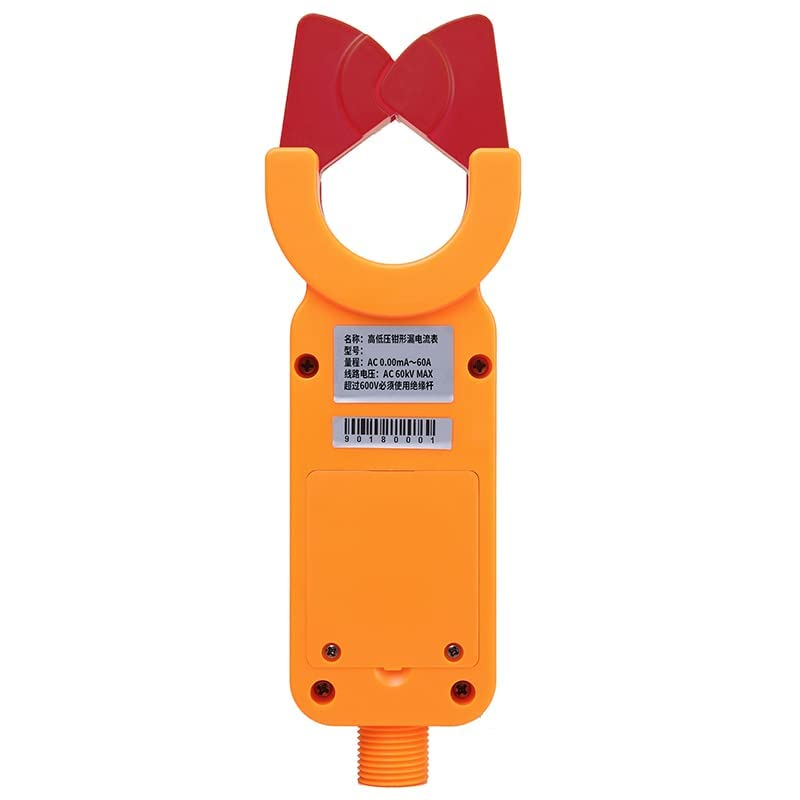

H/L Voltage Clamp Leakage Current Meter Tester AC Current Measurement with Measuring Current Range AC 0.00mA~60.0A Resolution 0.01mA

QIUSUO H/L Voltage Clamp Leakage Current Meter Tester AC Current Measurement with Measuring Current Range AC 0.00mA~60.0A Resolution 0.01mA Technical specification Range: 0.00mA～999mA; Accuracy: ±1%rdg±5dgt; Resolution:0.01mA Range: 1.00A～60.0A; Accuracy: ±1.5%rdg±5dgt; Resolution:0.01mA*Note: 23℃±5℃, 80%RH or less Power source: DC6V alkaline dry battery (1.5V AAA×4)(NOT INCLUDED) Display mode: 4-digit LCD display, backlight function, suitable for dim places LCD size: 47mm × 28.5mm Instrument size: detector: 76mm × 255mm × 31mm Jaw size：Φ48mmMeasurement range：0.00mA～60A(50/60Hz auto) Resolution：0.01mA Data storage: 99 groups, storage process "MEM" symbol indication, "FULL" symbol flashing display indicates that the storage is full PEAK hold: automatically hold the high test value, usually press PEAK key in test mode, PEAK light is on, that is, to open the PEAK hold function, then press PEAK key to cancel this function Line voltage：Below 60kV with insulated sheath wire test, below 35kV bare wire test (with insulated pole operation) Interference: No 315MHz, 433MHz co-channel signal interference Insulation rod size: Φ32mm, 1m/section (5 sections) Insulation strength: AC 110kV/rms (5 sections of insulated pole all connected, between the two ends)

• Test mode: Clamp CT, integral mode Jaw size ： Φ48mm
• Sampling rate ： 2 times / second;Shift : 0.00mA～60A fully automatic shift
• The current clamp adopts magnetic shield and CT digital integration technology, with strong anti-interference, high accuracy andstable test.
• Peak hold, data hold and data memory function.Display mode: 4-digit LCD display, backlight function
• The innovative automatic plug and pull structure makes the meter easy to clamp or withdraw the tested wire by pressing or pulling the insulation rod, saving time and convenient.
