Mini Linear Rail Guide Slide Actuator X Y Z Linear Stage Actuator with T Screw Rod 100mm Stroke Stepper Motion Stage

1. FLEXIBLE AND VERSATILE: The sliding table can be composed of multi axes use, such as horizontal cross, gantry, three axes, four axes, etc., very flexible and convenient 2. TECHNICAL PARAMETERS: Linear slide stage actuator effective travel for 100mm, step angle for 1.8 degrees, diameter 6mm, helical pitch 1mm, pitch 1mm(guide screw can move 1mm a circle) 3. LOW NOISE MONORAIL: Linear slide adopt single guide design, bring stable , low noise, suitable for X, Y and Z axes, useful and practical 4. STABLE METAL STRUCTURE: The linear motion table is made of excellent alloy material with a thickened bottom plate to ensure stability during 5. ACCURATE AND EFFICIENT: The slide table has the advantages of large horizontal and vertical load, high positioning accuracy, high efficiency and good stability 6. WIDE APPLICATION: Mini linear rail guide slide actuator is widely used in DIY CNC milling machine, inspection equipment, optical measurement, fine tuning displacement, mechanical positioning and so on Specification: Item Type: Mini Linear Rail Guide Slide Actuator Material: Aluminium alloy Effective Travel(distance that slider can move on sliding table): Approx. 100mm / 3.94in Screw Rod Diameter: Approx. 6mm / 0.24in Helical Pitch(distance that slider move on screw rod when motor turn around): Approx. 1mm / 0.04in Screw Rod Accuracy: ±0.01mm Load: Horizontal: ≤5KG; Vertical: ≤1KG Positioning Accuracy: ±0.1mm Holding Torsion: 6N.cm Current: 0.6A : 5.5Ω Inductance: 3.2MH Speed: 0-120mm/s Step Angle: 1.8 Degrees How to Use: Install and use directly. packing list: 1 x Mini Linear Rail Guide Slide Actuator

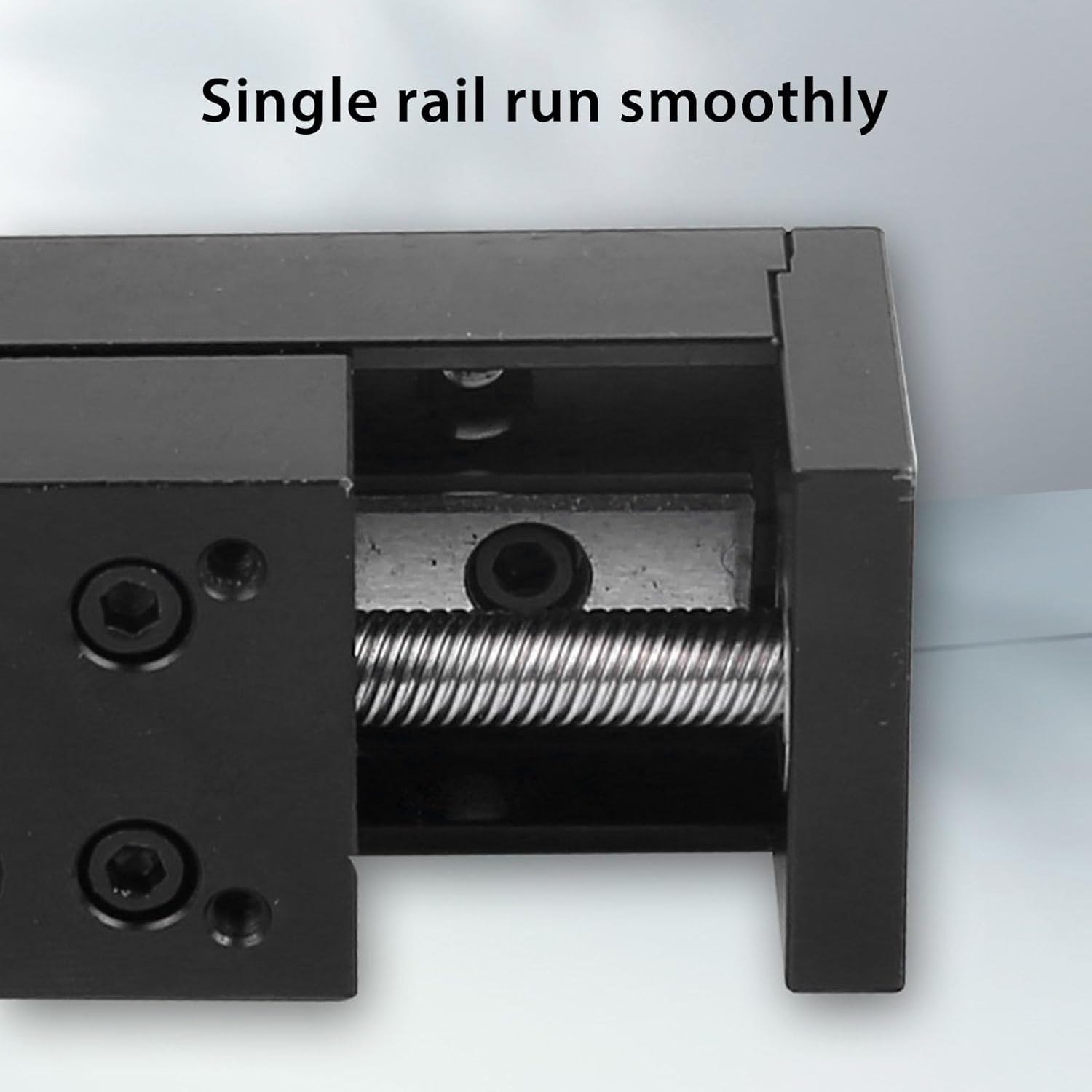

• Low Noise Monorail: Linear slide adopts single guide design, bring stable , low noise, suitable for X, Y and Z axes, useful and practical
• Flexible and Versatile: The sliding table can be composed of multi axes use, such as horizontal cross, gantry, three axes, four axes, etc., very flexible and convenient
• High Positioning Accuracy: The slide table has the advantages of large horizontal and vertical load, high positioning accuracy, high efficiency and good stability
• Good Stability: The linear motion table is made of excellent alloy material with a thickened bottom plate to ensure stability during
• Technical Parameters: Linear slide stage actuator effective travel for 100mm, step angle for 1.8 degrees, diameter 6mm, helical pitch 1mm, pitch 1mm(guide screw can move 1mm a circle)
